Suspension Measurement Jig

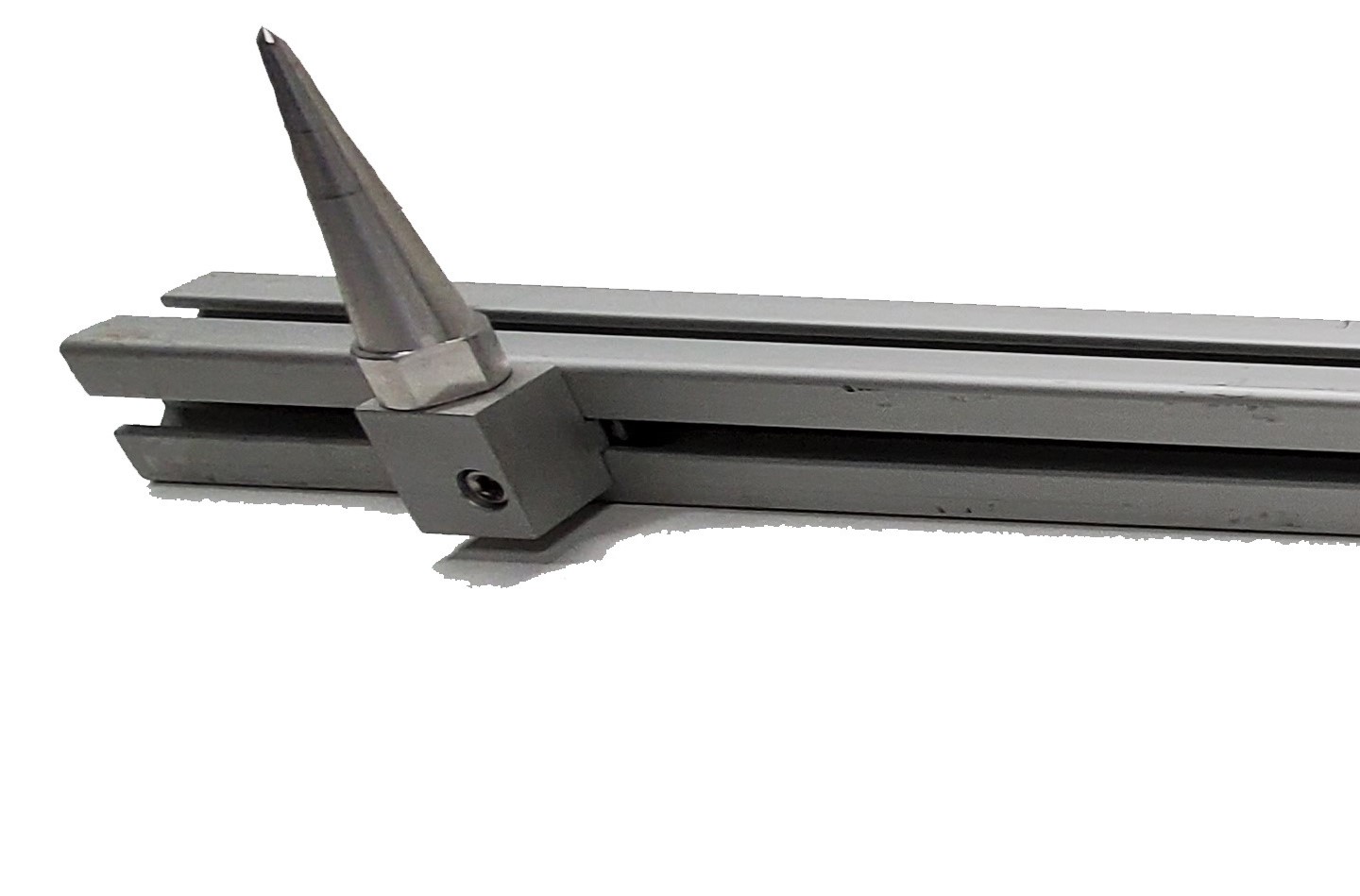

  • Simple trammel jig to assist in repeatable suspension set-up
  • Can be used with almost all rod end and spherical bearing suspension
  • Precisely machined universal cone fits 3/16″ through 7/8″ ID rod ends
  • Tapered tip aids in accurate measurements
  • Includes hex wrench
  • Available as a DIY kit (you provide the extrusion) or a complete kit with up to 40″ extrusion
  • Also available with an additional tee and cone to measure both legs of an A-arm simultaneously


Additional information

Weight 5 lbs
Dimensions 42 × 4 × 4 in
Kit Config

Complete kit, DIY kit, Complete kit + tee
